Magnet Catch G (For Resin Panal Door)

Product Type

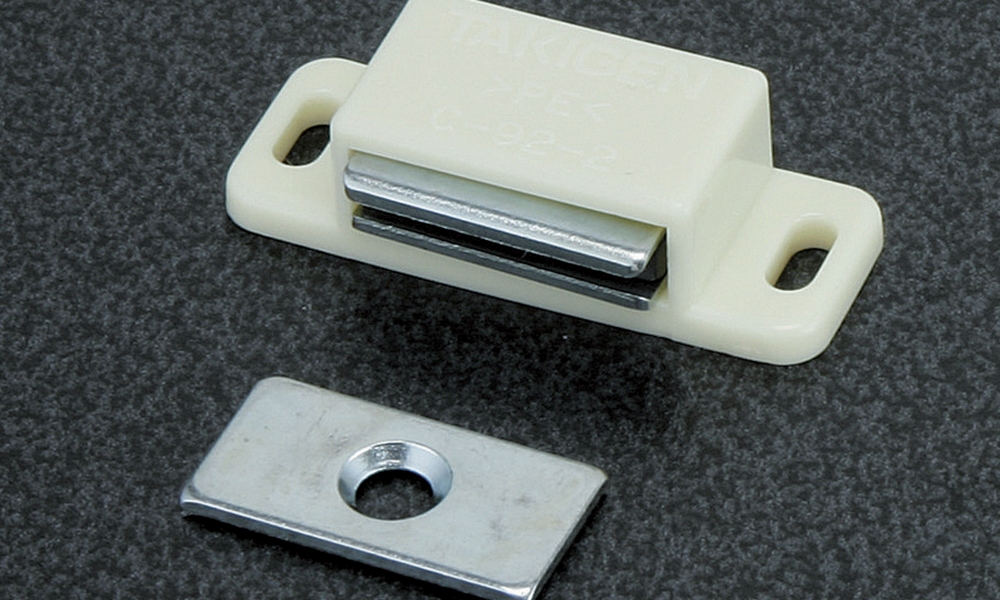

Magnet Catch G

Item No. : SFA-498

STP SOLID DXF

Technical Data >>

MG-G SS Kit

Item No. : SFK-4X4

STP SOLID DXF

Technical Data >>

Name: MG-G SS Kit (For 20 series)
L (mm): -
Material: ABS (Magnet Catch)
SPCC Uni-Chrome (Door Side-Setting Plate)
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch G x 1

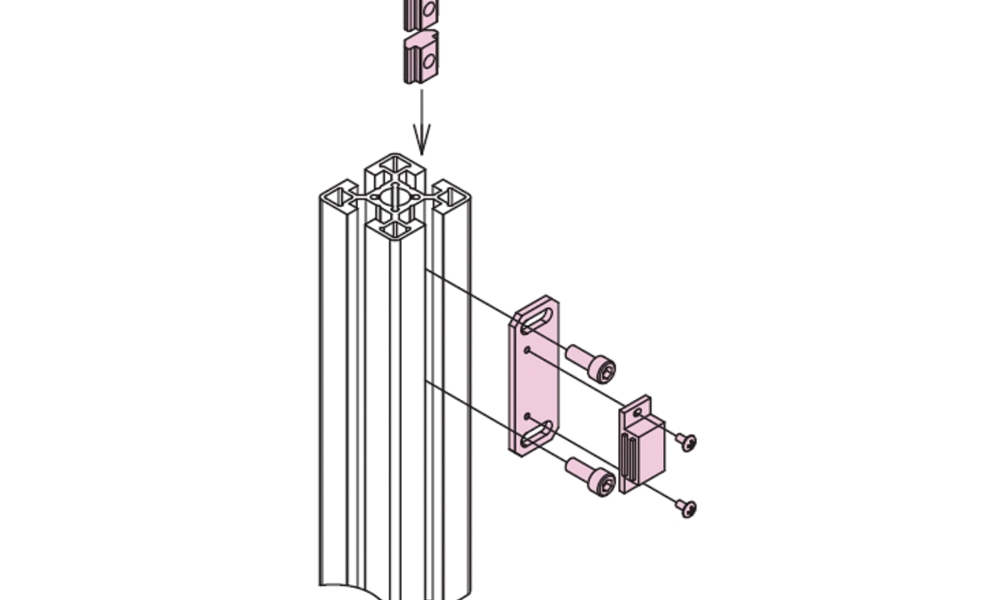

Plate to attach Magnet Catch G 20 x 1
Cap Nut (M3) x 2
Truss Screw (M3 x 6) x 2
Hexagon Socket Bolt (M5 x 8) x 2
T Nut SS (M5) x 2
Flat-Head Screw (M3 x 8) x 2
Mass Unit: 14 g (Magnet Catch G)
EnvironmentRoHS: RoHS10 Compliant

MG-G S Kit

Item No. : SFK-4X5

STP SOLID DXF

Technical Data >>

Name: MG-G S Kit (For 30 series)
L (mm): -
Material: ABS (Magnet Catch)
SPCC Uni-Chrome (Door Side-Setting Plate)
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch G x 1
Plate to attach Magnet Catch G 30 x 1
Cap Nut (M3) x 2
Truss Screw (M3 x 6) x 2
Hexagon Socket Bolt (M6 x 10) x 2
T Nut S (M6) x 2
Flat-Head Screw (M3 x 10) x 2
Mass Unit: 14 g (Magnet Catch G)
EnvironmentRoHS: RoHS10 Compliant

MG-G L Kit

Item No. : SFK-4X6

STP SOLID DXF

Technical Data >>

Name: MG-G L Kit (For 40.45 series)
L (mm): -
Material: ABS (Magnet Catch)
SPCC Uni-Chrome (Door Side-Setting Plate)
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch G x 1
Plate to attach Magnet Catch G 30 x 1
Cap Nut (M3) x 2
Truss Screw (M3 x 6) x 2
Hexagon Socket Bolt (M6 x 15) x 2
T Nut L (M6) x 2
Flat-Head Screw (M3 x 10) x 2
Mass Unit: 14 g (Magnet Catch G)
EnvironmentRoHS: RoHS10 Compliant

Adsorbability :10N
