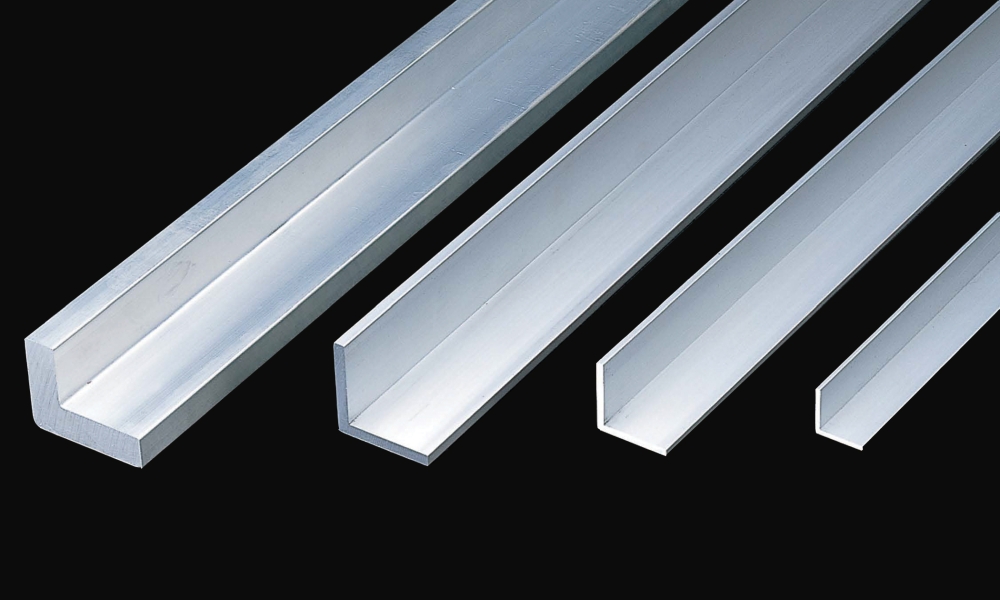

Angle

Product Type

Angle 2020 T=2 (L=50~4000)
Item No. : SFF-A014
STP SOLID DXF
Name
Angle 2020 T=2 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=0.288 x 104mm4
ly=0.288 x 104mm4
Section Modulus
Zx=0.201 x 103mm3
Zy= 0.201 x 103mm3
EnvironmentRoHS
Weight 0.21 kg / m
RoHS Compliant
Angle 2020 T=3 (L=50~4000)
Item No. : SFF-A024
STP SOLID DXF
Name
Angle 2020 T=3 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
Geometrical Moment of Inertia
lx=0.403 x 104mm4
ly=0.403 x 104mm4
Section Modulus
Zx=0.289 x 103mm3
Zy= 0.289 x 103mm3
Mass Unit
-
EnvironmentRoHS
Weight 0.30 kg / m
RoHS Compliant
Angle 2040 T=2 (L=50~4000)
Item No. : SFF-A034
STP SOLID DXF
Name
Angle 2040 T=2 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=0.348 x 104mm4
ly=1.964 x 104mm4
Section Modulus
Zx=0.219 x 103mm3
Zy=0.758 x 103mm3
EnvironmentRoHS
Weight 0.31 kg / m
RoHS Compliant
Angle 2040 T=3 (L=50~4000)
Item No. : SFF-A044
STP SOLID DXF
Name
Angle 2040 T=3 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
SFF-A044
Mass Unit
Geometrical Moment of Inertia
lx=0.489 x 104mm4
ly=2.828 x 104mm4
Section Modulus
Zx=0.315 x 103mm3
Zy=1.108 x 103mm3
EnvironmentRoHS
Weight 0.46 kg / m
EnvironmentRoHS Compliant
Angle 3030 T=2 (L=50~4000)
Item No. : SFF-A054
STP SOLID DXF
Name
Angle 3030 T=2 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=1.019 x 104mm4
ly=1.019 x 104mm4
Section Modulus
Zx=0.468 x 103mm3
Zy=0.468 x 103mm3
EnvironmentRoHS
Weight 0.31 kg / m
RoHS Compliant
Angle 3030 T=3 (L=50~4000)
Item No. : SFF-A064
STP SOLID DXF
Name
Angle 3030 T=3 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=1.458 x 104mm4
ly=1.458 x 104mm4
Section Modulus
Zx=0.681 x 103mm3
Zy=0.681 x 103mm3
EnvironmentRoHS
Weight 0.46 kg / m
RoHS Compliant
Angle 3030 T=5 (L=50~4000)
Item No. : SFF-A074
STP SOLID DXF
Name
Angle 3030 T=5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=2.216 x 104mm4
ly=2.216 x 104mm4
Section Modulus
Zx=1.071 x 103mm3
Zy=1.071 x 103mm3
EnvironmentRoHS
Weight 0.74 kg / m
RoHS Compliant
Angle 4040 T=2 (L=50~4000)
Item No. : SFF-A084
STP SOLID DXF
Name
Angle 4040 T=2 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=2.476 x 104mm4
ly=2.476 x 104mm4
Section Modulus
Zx=0.846 x 103mm3
Zy=0.846 x 103mm3
EnvironmentRoHS
Weight 0.42 kg / m
RoHS Compliant
Angle 4040 T=3 (L=50~4000)
Item No. : SFF-A094
STP SOLID DXF
Name
Angle 4040 T=3 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=3.581 x 104mm4
ly=3.581 x 104mm4
Section Modulus
Zx=1.239 x 103mm3
Zy=1.239 x 103mm3
EnvironmentRoHS
Weight 0.62 kg / m
RoHS Compliant
Angle 4040 T=5 (L=50~4000)
Item No. : SFF-A104
STP SOLID DXF
Name
Angle 4040 T=5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=5.561 x 104mm4
ly=5.561 x 104mm4
Section Modulus
Zx=1.974 x 103mm3
Zy=1.974 x 103mm3
EnvironmentRoHS
Weight 1.01 kg / m
RoHS Compliant
Angle 2550 T=3 (L=50~4000)
Item No. : SFF-A334
STP SOLID DXF
Name
Angle 2550 T=3 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=0.993 x 104mm4
ly=5.661 x 104mm4
Section Modulus
Zx=0.504 x 103mm3
Zy=1.759 x 103mm3
EnvironmentRoHS
Weight 0.58 kg / m
RoHS Compliant
Angle 5050 T=3 (L=50~4000)
Item No. : SFF-A344
STP SOLID DXF
Name
Angle 5050 T=3 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=7.149 x 104mm4
ly=7.149 x 104mm4
Section Modulus
Zx=1.964 x 103mm3
Zy=1.964 x 103mm3
EnvironmentRoHS
Weight0.79 kg / m
EnvironmentRoHS Compliant
Angle 1515 T=1.5 (L=50~4000)
Item No. : SFF-A424
STP SOLID DXF
Name
Angle 1515 T=1.5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=0.091 x 104mm4
ly=0.091 x 104mm4
Section Modulus
Zx=0.085 x 103mm3
Zy= 0.085 x 103mm3
EnvironmentRoHS
Weight0.12 kg / m
RoHS Compliant
Angle 1520 T=2 (L=50~4000)
Item No. : SFF-A434
STP SOLID DXF
Name
Angle 1520 T=2 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=0.126 x 104mm4
ly=0.261 x 104mm4
Section Modulus
Zx=0.114 x 103mm3
Zy= 0.193 x 103mm3
EnvironmentRoHS
Weight 0.18 kg / m
RoHS Compliant
Angle 2020 T=1.5 (L=50~4000)
Item No. : SFF-A444
STP SOLID DXF
Name
Angle 2020 T=1.5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=0.223 x 104mm4
ly=0.223 x 104mm4
Section Modulus
Zx=0.154 x 103mm3
Zy=0.154 x 103mm3
EnvironmentRoHS
Weight 0.16 kg / m
RoHS Compliant
Angle 5050 T=4 (L=50~4000)
Item No. : SFF-A454
STP SOLID DXF
Name
Angle 5050 T=4 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=9.255 x 104mm4
ly=9.255 x 104mm4
Section Modulus
Zx=2.596 x 103mm3
Zy=2.596 x 103mm3
EnvironmentRoHS
Weight 1.04 kg / m
RoHS Compliant
Angle 5050 T=5 (L=50~4000)
Item No. : SFF-A464
STP SOLID DXF
Name
Angle 5050 T=5 (L=50~4000)
L (mm)
-
Material
-
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=11.244 x 104mm4
ly=11.244 x 104mm4
Section Modulus
Zx=3.153 x 103mm3
Zy=3.153 x 103mm3
EnvironmentRoHS
Weight 1.28 kg / m
RoHS Compliant
Angle 7575 T=6 (L=50~4000)
Item No. : SFF-A514
STP SOLID DXF
Name
Angle 7575 T=6 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=46.882 x 104mm4
ly=46.882 x 104mm4
Section Modulus
Zx=8.677 x 103mm3
Zy=8.677 x 103mm3
EnvironmentRoHS
Weight 2.33 kg / m
RoHS Compliant
Angle 100100 T=6 (L=50~4000)
Item No. : SFF-A524
STP SOLID DXF
Name
Angle 100100 T=6 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=114.390 x 104mm4
ly=114.390 x 104mm4
Section Modulus
Zx=15.718 x 103mm3
Zy=15.718 x 103mm3
EnvironmentRoHS
Weight 3.14 kg / m
RoHS Compliant
Angle 150150 T=6 (L=50~4000)
Item No. : SFF-A534
STP SOLID DXF
Name
Angle 150150 T=6 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=397.52 x 104mm4
ly=397.52 x 104mm4
Section Modulus
Zx=36.051 x 103mm3
Zy=36.051 x 103mm3
EnvironmentRoHS
Weight 4.76 kg / m
RoHS Compliant
Angle 6060 T=5 (L=50~4000)
Item No. : SFF-A574
STP SOLID DXF
Name
Angle 6060 T=5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=19.9 x 104mm4
ly=19.9 x 104mm4
Section Modulus
Zx=4.61 x 103mm3
Zy=4.61 x 103mm3
EnvironmentRoHS
Weight 1.55 kg / m
RoHS Compliant
Angle 7575 T=5 (L=50~4000)
Item No. : SFF-AM4
STP SOLID DXF
Name
Angle 7575 T=5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=39.814 x 104mm4
ly=39.814 x 104mm4
Section Modulus
Zx=7.319 x 103mm3
Zy=7.319 x 103mm3
EnvironmentRoHS
Weight 1.96 kg / m
RoHS Compliant
Angle 2020 T=5 (L=50~4000)
Item No. : SFF-AU4
STP SOLID DXF
Name
Angle 2020 T=5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Geometrical Moment of Inertia
lx=0.589 x 104mm4
ly=0.589 x 104mm4
Section Modulus
Zx=0.446 x 103mm3
Zy=0.446 x 103mm3
EnvironmentRoHS
Weigh t0.47 kg / m
RoHS Compliant
