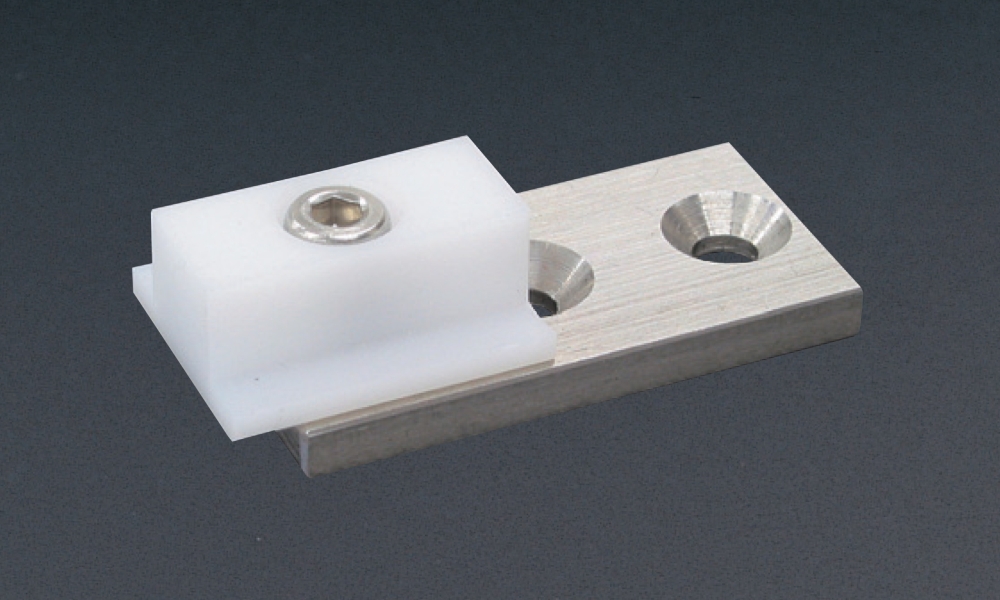

Folding Door Slider

Product Type

Folding Slider S-SSA

Item No. : SFK-801A

STP SOLID DXF

Technical Data >>

Name: Folding Slider S-SSA
L (mm): -
Material: Polyacetal (Slide)
Stainless (Attaching Plate)
Geometrical Moment of Inertia: -
Section Modulus: Folding Door Slider Block S x 1
Folding Door Slider Plate SS x 1
ST Nut SS (M4) x 2
Hexagon Socket Bolt (M4 x 8) Stainless x 1
Flat Screw (M4 x 8)
Stainless x 2
Spacer x 1
Mass Unit: 45 g
EnvironmentRoHS: RoHS Compliant
Green Procurement

Folding Slider S-SSB

Item No. : SFK-802A

STP SOLID DXF

Technical Data >>

Name: Folding Slider S-SSB
L (mm): -
Material: Polyacetal (Slide)
Stainless (Attaching Plate)
Geometrical Moment of Inertia: -
Section Modulus: Folding Door Slider Block S x 1
Folding Door Slider Plate SS x 1
ST Nut SS (M4) x 2
Hexagon Socket Bolt (M4 x 8) Stainless x 1
Flat Screw (M4 x 8) Stainless x 2
Spacer x 1
Mass Unit: 45 g
EnvironmentRoHS: RoHS Compliant
Green Procurement

Folding Slider S

Item No. : SFK-803A

STP SOLID DXF

Technical Data >>

Name: Folding Slider S
L (mm): -
Material: Polyacetal (Slide)
Stainless (Attaching Plate)
Geometrical Moment of Inertia: -
Section Modulus: Folding Door Slider Block S x 1
Folding Door Slider Plate S x 1
ST Nut S (M4) x 2
Hexagon Socket Bolt (M4 x 8) Stainless x 1
Flat Screw (M4 x 12) Stainless x 2
Spacer x 1
Mass Unit: 65 g
EnvironmentRoHS: RoHS Compliant
Green Procurement

Folding Slider L-S Kit

Item No. : SFK-804A

STP SOLID DXF

Technical Data >>

Name: Folding Slider L-S Kit
L (mm): -
Material: Polyacetal (Slide)
Stainless (Attaching Plate)
Geometrical Moment of Inertia: -
Section Modulus: Folding Door Slider Block L x 1
Folding Door Slider Plate S x 1
ST Nut S (M4) x 2
Hexagon Socket Bolt (M4 x 8) Stainless x 1
Flat Screw (M4 x 12) Stainless x 2
Spacer x 1
Mass Unit: 63 g
EnvironmentRoHS: RoHS Compliant
Green Procurement

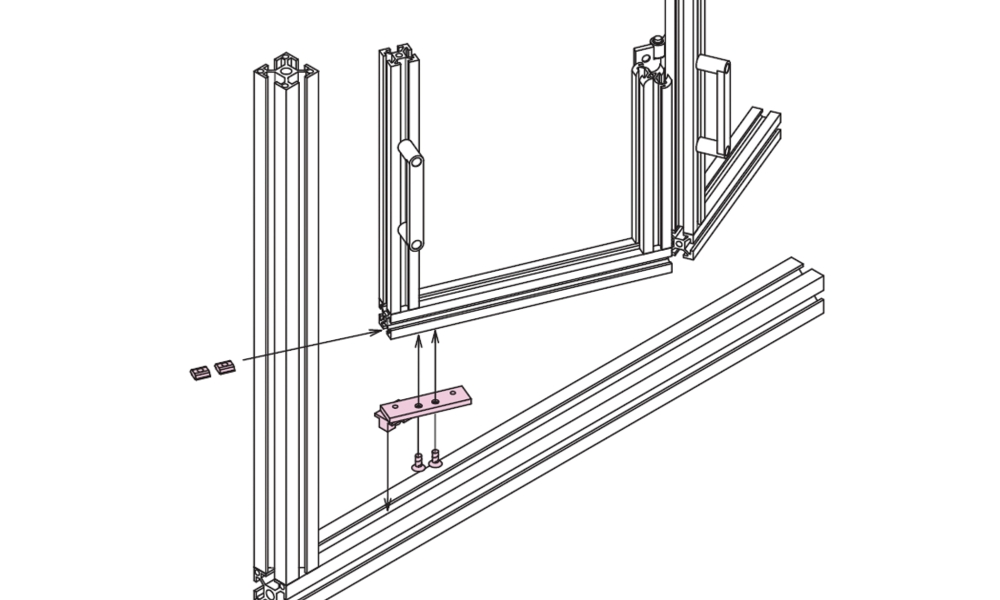

- Down when Door opens to right, up when Door opens to left
- Usable Frame: SF-30 Series SF-20·20
