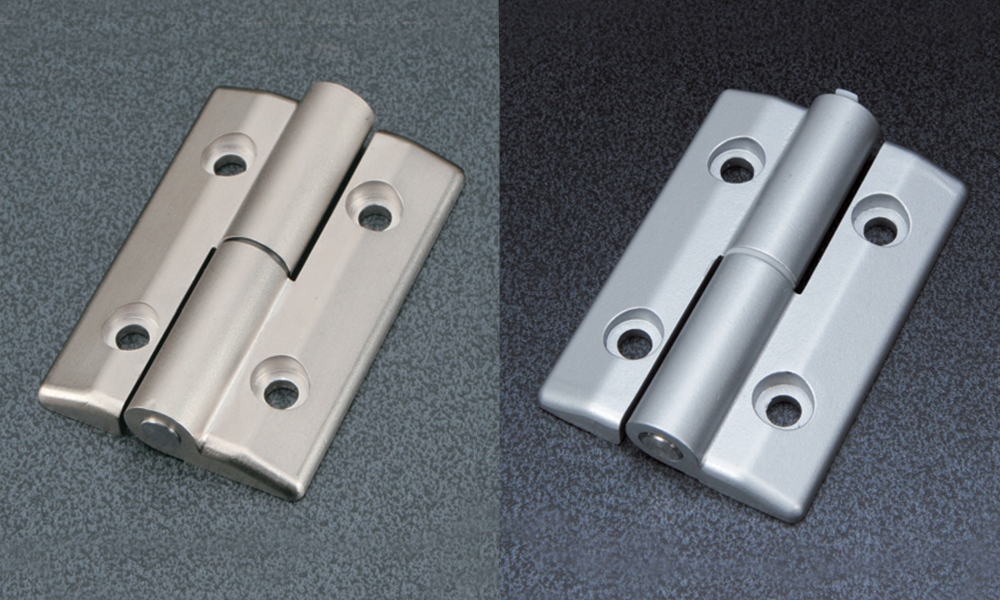

Irregular Shape Slip Joint Hinge Kit (E-Less Nickel Coat)

Product Type

Slip-Joint Hinge 3020-R Kit (E-Less Nickel Coat)

Item No. : SFK-2D1S

STP SOLID DXF

Technical Data >>

Name: Slip-Joint Hinge 3020-R Kit (E-Less Nickel Coat)
L (mm): -
Material: Aluminum Die-Casting (ADC12)
Geometrical Moment of Inertia: -
Section Modulus: Slip-Joint Hinge 3020-R x 1
Hexagon Socket Low Head Bolt (M5x8) Stainless x 2
Hexagon Socket Low Head Bolt (M6x12) Stainless x 2
ST Nut SS (M5) x 2
ST Nut S (M6) x 2
Mass Unit: Weight 105 g
Load Capacity 73 N/pc
EnvironmentRoHS: RoHS Compliant
Green Procurement

Slip-Joint Hinge 3020-L Kit (E-Less Nickel Coat)

Item No. : SFK-2D2S

STP SOLID DXF

Technical Data >>

Name: Slip-Joint Hinge 3020-L Kit (E-Less Nickel Coat)
L (mm): -
Material: Aluminum Die-Casting (ADC12)
Geometrical Moment of Inertia: -
Section Modulus: Slip-Joint Hinge 3020-L x 1
Hexagon Socket Low Head Bolt (M5x8) Stainless x 2
Hexagon Socket Low Head Bolt (M6x12) Stainless x 2
ST Nut SS (M5) x 2
ST Nut S (M6) x 2
Mass Unit: Weight 105 g
Load Capacity 73 N/pc
EnvironmentRoHS: RoHS Compliant
Green Procurement

Slip-Joint Hinge 4020-R Kit (E-Less Nickel Coat)

Item No. : SFK-2D3S

STP SOLID DXF

Technical Data >>

Name: Slip-Joint Hinge 4020-R Kit (E-Less Nickel Coat)
L (mm): -
Material: Aluminum Die-Casting (ADC12)
Geometrical Moment of Inertia: -
Section Modulus: Slip-Joint Hinge 4020-R x 1
Hexagon Socket Low Head Bolt (M5x8) Stainless x 2
Hexagon Socket Low Head Bolt (M6x15) Stainless x 2
ST Nut SS (M5) x 2
ST Nut L (M6) x 2
Mass Unit: Weight 114 g
Load Capacity 73 N/pc
EnvironmentRoHS: RoHS Compliant
Green Procurement

Slip-Joint Hinge 4020-L Kit (E-Less Nickel Coat)

Item No. : SFK-2D4S

STP SOLID DXF

Technical Data >>

Name: Slip-Joint Hinge 4020-L Kit (E-Less Nickel Coat)
L (mm): -
Material: Aluminum Die-Casting (ADC12)
Geometrical Moment of Inertia: -
Section Modulus: Slip-Joint Hinge 4020-L x 1
Hexagon Socket Low Head Bolt (M5x8) Stainless x 2
Hexagon Socket Low Head Bolt (M6x15) Stainless x 2
ST Nut SS (M5) x 2
ST Nut L (M6) x 2
Mass Unit: Weight 114 g
Load Capacity 73 N/pc
EnvironmentRoHS: RoHS Compliant
Green Procurement

Slip-Joint Hinge 4520-R Kit (E-Less Nickel Coat)

Item No. : SFK-2D5S

STP SOLID DXF

Technical Data >>

Name: Slip-Joint Hinge 4520-R Kit (E-Less Nickel Coat)
L (mm): -
Material: Aluminum Die-Casting (ADC12)
Geometrical Moment of Inertia: -
Section Modulus: Slip-Joint Hinge 4520-R x 1
Hexagon Socket Low Head Bolt (M5x8) Stainless x 2
Hexagon Socket Low Head Bolt (M6x15) Stainless x 2
ST Nut SS (M5) x 2
ST Nut L (M6) x 2
Mass Unit: -
EnvironmentRoHS: RoHS Compliant
Green Procurement

Slip-Joint Hinge 4520-L Kit (E-Less Nickel Coat)

Item No. : SFK-2D6S

STP SOLID DXF

Technical Data >>

Name: Slip-Joint Hinge 4520-L Kit (E-Less Nickel Coat)
L (mm): -
Material: Aluminum Die-Casting (ADC12)
Geometrical Moment of Inertia: -
Section Modulus: Slip-Joint Hinge 4520-L x 1
Hexagon Socket Low Head Bolt (M5x8) Stainless x 2
Hexagon Socket Low Head Bolt (M6x15) Stainless x 2
ST Nut SS (M5) x 2
ST Nut L (M6) x 2
Mass Unit: Weight 120 g
Load Capacity 73 N/pc
EnvironmentRoHS: RoHS Compliant
Green Procurement

Slip-Joint Hinge 4030-L Kit (E-Less Nickel Coat)

Item No. : SFK-2E2S

STP SOLID DXF

Technical Data >>

Name: Slip-Joint Hinge 4030-L Kit (E-Less Nickel Coat)
L (mm): -
Material: Aluminum Die-Casting (ADC12)
Geometrical Moment of Inertia: -
Section Modulus: Slip-Joint Hinge 4030-L x 1
Hexagon Socket Low Head Bolt (M6x12) Stainless x 2
Hexagon Socket Low Head Bolt (M6x15) Stainless x 2
ST Nut S (M6) x 2
ST Nut L (M6) x 2
Mass Unit: Weight 123 g
Load Capacity 98 N/pc
EnvironmentRoHS: RoHS Compliant
Green Procurement

Electroless nickel plating
