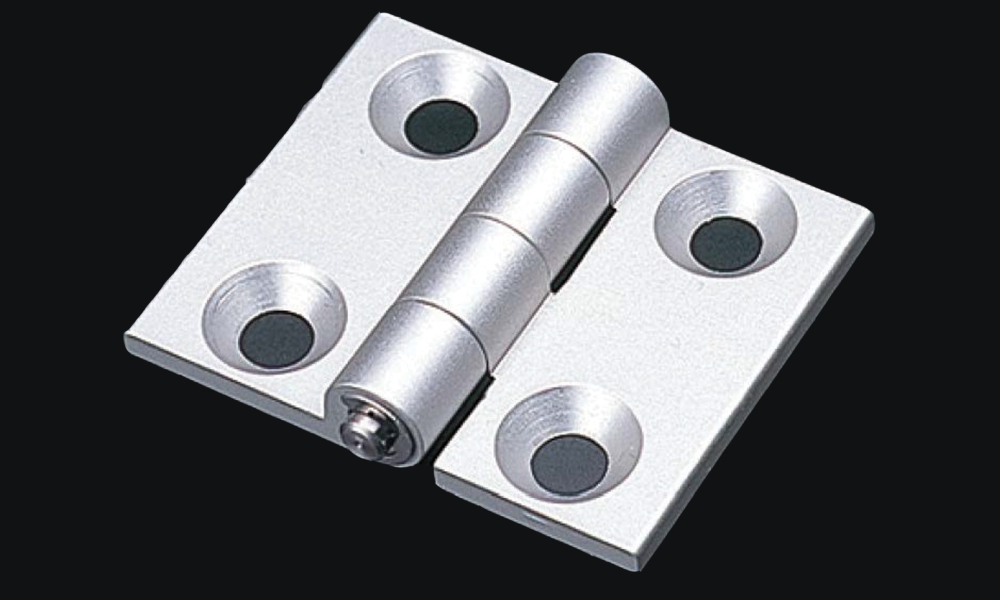

Flat Hinge

Product Type

Flat Hinge SS

Item No. : SFA-2A1

SOLID DXF

Technical Data >>

Name: Flat Hinge SS
L (mm): -
Material: A6N01SS-T5
Alumite treatment
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: Weight 26.4 g
Load Capacity 49 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge S

Item No. : SFA-2A2

SOLID DXF

Technical Data >>

Name: Flat Hinge S
L (mm): -
Material: A6N01SS-T5
Alumite treatment
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: Weight 35.4 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge L40(M6)

Item No. : SFA-2A3

SOLID DXF

Technical Data >>

Name: Flat Hinge L40(M6)
L (mm): -
Material: A6N01SS-T5
Alumite treatment
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: Weight 58.7 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge L45(M6)

Item No. : SFA-2A4

SOLID DXF

Technical Data >>

Name: Flat Hinge L45(M6)
L (mm): -
Material: A6N01SS-T5
Alumite treatment
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: Weight 72.5 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge SS Kit

Item No. : SFK-2A1

SOLID DXF

Technical Data >>

Name: Flat Hinge SS Kit
L (mm): -
Material: A6N01SS-T5
Alumite treatment
Geometrical Moment of Inertia: -
Section Modulus: Flat Hinge SS x 1
Cross-Recessed Flat Head Bolt (M5 x 8) x 4
T Nut SS (M5) x 4
Mass Unit: Weight 26.4 g
Load Capacity 49 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge SS (Stainless) Kit

Item No. : SFK-2A1S

SOLID DXF

Technical Data >>

Name: Flat Hinge SS (Stainless) Kit
L (mm): -
Material: A6N01SS-T5
Alumite treatment
Bolt & Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Flat Hinge SS x 1
Cross-Recessed Flat Head Bolt (M5 x 8) x 4
T Nut SS (M5) x 4
Mass Unit: Weight 26.4 g
Load Capacity 49 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge S Kit

Item No. : SFK-2A2

SOLID DXF

Technical Data >>

Name: Flat Hinge S Kit
L (mm): -
Material: A6N01SS-T5
Alumite treatment
Geometrical Moment of Inertia: -
Section Modulus: Flat Hinge S x 1
Cross-Recessed Flat Head Bolt (M6 x 12) x 4
T Nut S (M6) x 4
Mass Unit: Weight 35.4 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge S (Stainless) Kit

Item No. : SFK-2A2S

SOLID DXF

Technical Data >>

Name: Flat Hinge S (Stainless) Kit
L (mm): -
Material: A6N01SS-T5
Alumite treatment
Bolt & Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Flat Hinge S x 1
Cross-Recessed Flat Head Bolt (M6 x 12) x 4
T Nut S (M6) x 4
Mass Unit: Weight 35.4 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge L40 (M6) Kit

Item No. : SFK-2A3

SOLID DXF

Technical Data >>

Name: Flat Hinge L40 (M6) Kit
L (mm): -
Material: A6N01SS-T5
Alumite treatment
Geometrical Moment of Inertia: -
Section Modulus: Flat Hinge L40 (M6) x 1
Cross-Recessed Flat Head Bolt (M6 x 15) x 4
T Nut L (M6) x 4
Mass Unit: Weight 58.7 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge L40 (M6) (Stainless) Kit

Item No. : SFK-2A3S

SOLID DXF

Technical Data >>

Name: Flat Hinge L40 (M6) (Stainless) Kit
L (mm): -
Material: A6N01SS-T5
Alumite treatment
Bolt & Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Flat Hinge L40 (M6) x 1
Cross-Recessed Flat Head Bolt (M6 x 15) x 4
T Nut L (M6) x 4
Mass Unit: Weight 58.7 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge L45 (M6) Kit

Item No. : SFK-2A4

SOLID DXF

Technical Data >>

Name: Flat Hinge L45 (M6) Kit
L (mm): -
Material: A6N01SS-T5
Alumite treatment
Geometrical Moment of Inertia: -
Section Modulus: Flat Hinge L45 (M6) x 1
Cross-Recessed Flat Head Bolt (M6 x 15) x 4
T Nut L (M6) x 4
Mass Unit: Weight 72.5 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge L45 (M6) (Stainless) Kit

Item No. : SFK-2A4S

SOLID DXF

Technical Data >>

Name: Flat Hinge L45 (M6) (Stainless) Kit
L (mm): -
Material: A6N01SS-T5
Alumite treatment
Bolt & Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Flat Hinge L45 (M6) x 1
Cross-Recessed Flat Head Bolt (M6 x 15) x 4
T Nut L (M6) x 4
Mass Unit: Weight 72.5 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant
