Magnet Catch G With Limit Switch

Product Type

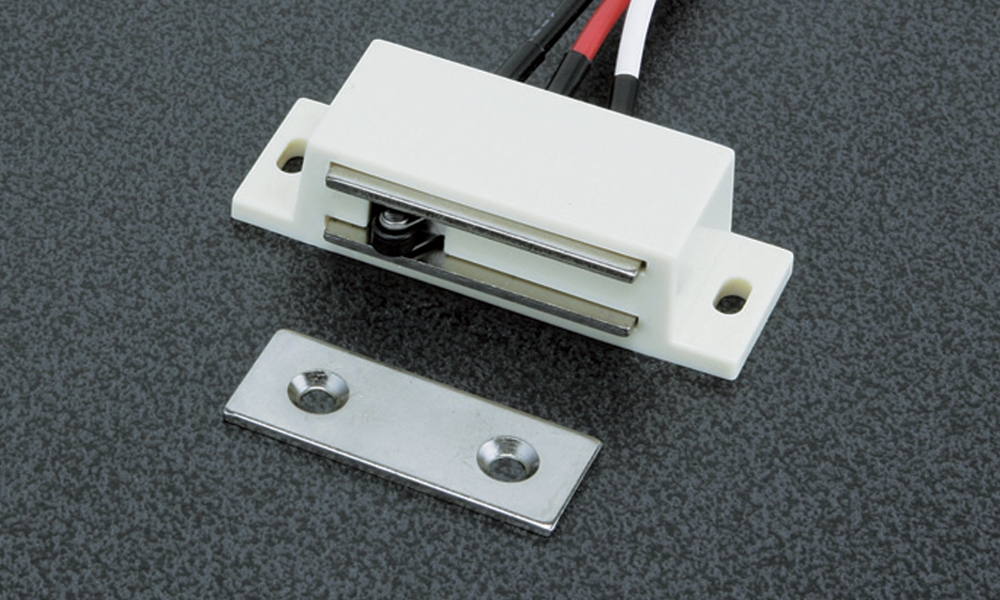

Magnet Catch G with Limit Switch

Item No. : SFA-499

STP SOLID DXF

Technical Data >>

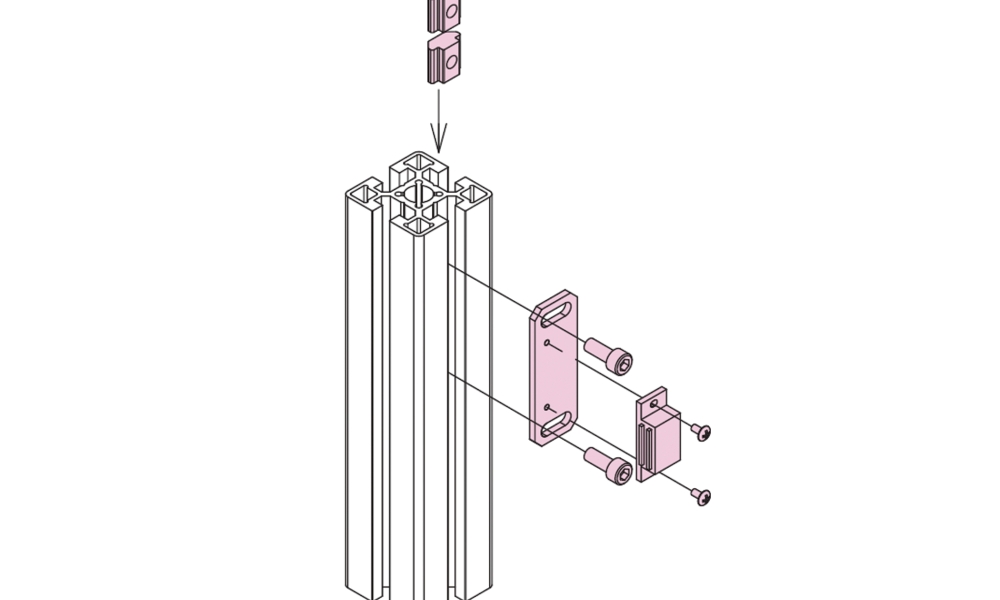

MG-G Limit SS Kit

Item No. : SFK-4X1

STP SOLID DXF

Technical Data >>

Name: MG-G Limit SS Kit (For 20 series)
L (mm): -
Material: ABS (Magnet Catch with G Limit Switch)
SPCC Uni-chrome (Door Side-Installing Plate)
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch G with Limit Switch x 1
T Nut SS (M5) x 2
MG-G Limit Installing Plate 20 x 1
Truss Screw (M3 x 6) x 2
Flat-Head Screw(M3 x 8) x 2
Hexagon Socket Bolt (M5 x 8) x 2
Cap Nut (M3) x 2
Mass Unit: 40 g (Magnet Catch G with Limit Switch)
EnvironmentRoHS: RoHS10 Compliant

MG-G Limit S Kit

Item No. : SFK-4X2

STP SOLID DXF

Technical Data >>

Name: MG-G Limit S Kit (For 30 series)
L (mm): -
Material: ABS (Magnet Catch with G Limit Switch)
SPCC Uni-chrome (Door Side-Installing Plate)
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch G with Limit Switch x 1
T Nut S (M6) x 2
MG-G Limit Installing Plate 30 x 1
Truss Screw (M3 x 6) x 2
Flat-Head Screw (M3 x 10) x 2
Hexagon Socket Bolt (M6 x 10) x2
Cap Nut (M3) x 2
Mass Unit: 40 g (Magnet Catch G with Limit Switch)
EnvironmentRoHS: RoHS10 Compliant

MG-G Limit L Kit

Item No. : SFK-4X3

STP SOLID DXF

Technical Data >>

Name: MG-G Limit L Kit (For 40.45 series)
L (mm): -
Material: ABS (Magnet Catch with G Limit Switch)
SPCC Uni-chrome (Door Side-Installing Plate)
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch G with Limit Switch x 1
T Nut L (M6) x 2
MG-G Limit Installing Plate 30 x 1
Truss Screw (M3 x 6) x 2
Flat-Head Screw (M3 x 10) x 2
Hexagon Socket Bolt (M6 x 15) x 2
Cap Nut (M3) x 2
Mass Unit: 40 g (Magnet Catch G with Limit Switch)
EnvironmentRoHS: RoHS10 Compliant
