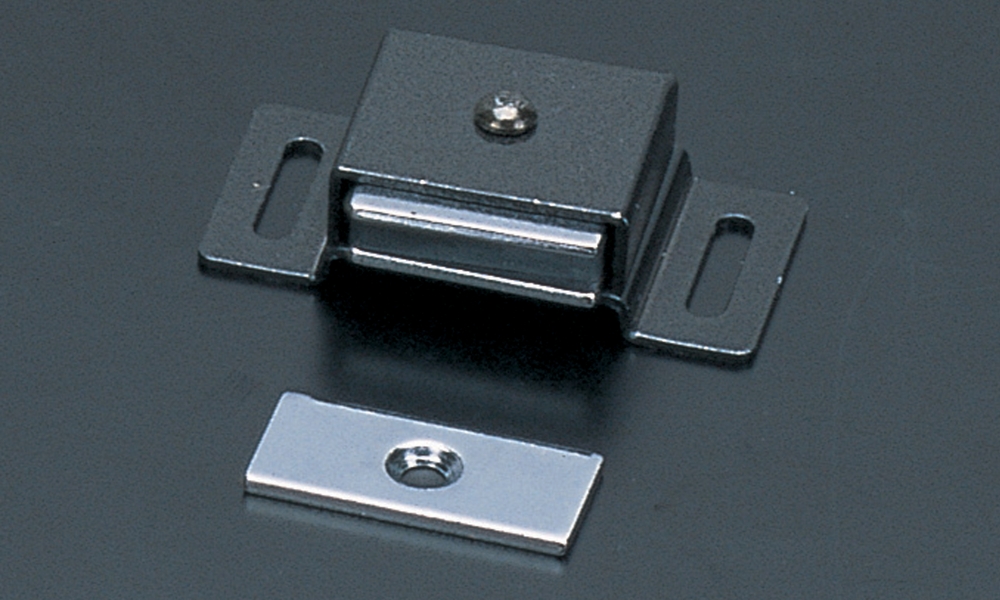

Magnet Catch Kit for Folding Door

Product Type

MG Bracket S Kit For Folding Door

Item No. : SFK-4AF

STP SOLID DXF

Technical Data >>

Name: MG Bracket S Kit For Folding Door
L (mm): -
Material: -
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch N x 1
MG Bracket S x 1
Truss Screw (M4 x 5) x 2
Flat Screw (M3 x 8) x 1
T Nut S (M3) x 2
T Nut S (M5) x 2
Hexagon Socket Bolt (M5 x 10) x 2
Mass Unit: -
EnvironmentRoHS: RoHS10 Compliant

MG Bracket L-S Kit For Folding Door

Item No. : SFK-4AG

STP SOLID DXF

Technical Data >>

Name: MG Bracket L-S Kit For Folding Door
L (mm): -
Material: -
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch N x 1
MG Bracket L-S x 1
Truss Screw (M4 x 5) x 2
Flat Screw (M3 x 8) x 1
T Nut S (M3) x 1
T Nut L (M5) x 2
Hexagon Socket Bolt (M5 x 15) x 2
Mass Unit: -
EnvironmentRoHS: RoHS10 Compliant

MG Bracket S-SS Kit For Folding Door

Item No. : SFK-4AJ

STP SOLID DXF

Technical Data >>

Name: MG Bracket S-SS Kit For Folding Door
L (mm): -
Material: -
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch N x 1
MG Bracket S x 1
Truss Screw (M4 x 5) x 2
Flat Screw (M3 x 12) x2
T Nut SS (M3) x 2
T Nut S (M5) x 2
Hexagon Socket Bolt (M5 x 22) x 2
Magnet Plate for Folding Door SS x 1
Mass Unit: -
EnvironmentRoHS: RoHS10 Compliant

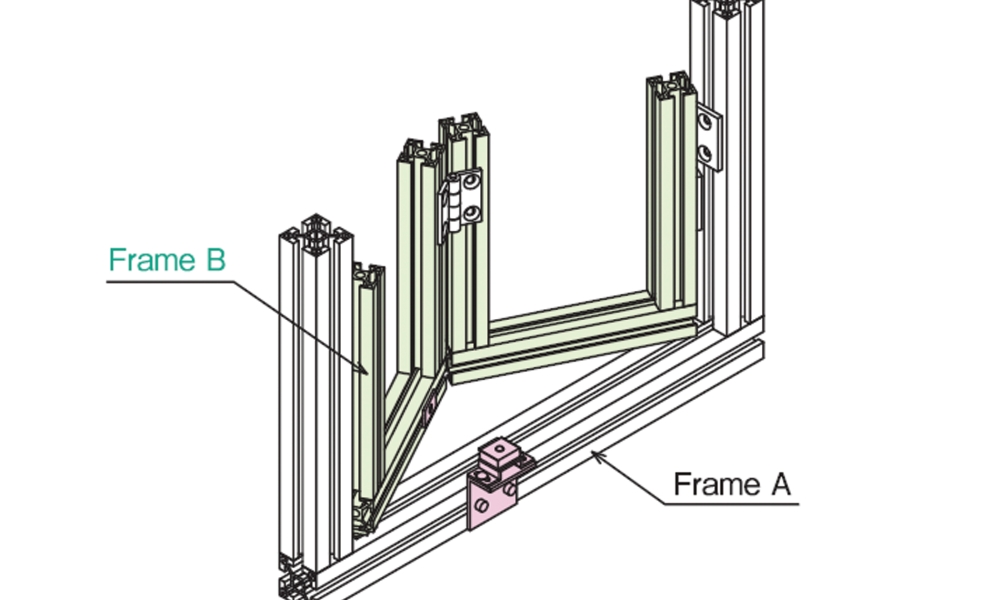

Frame A: SF-30 series
Frame B: SF-20 series
