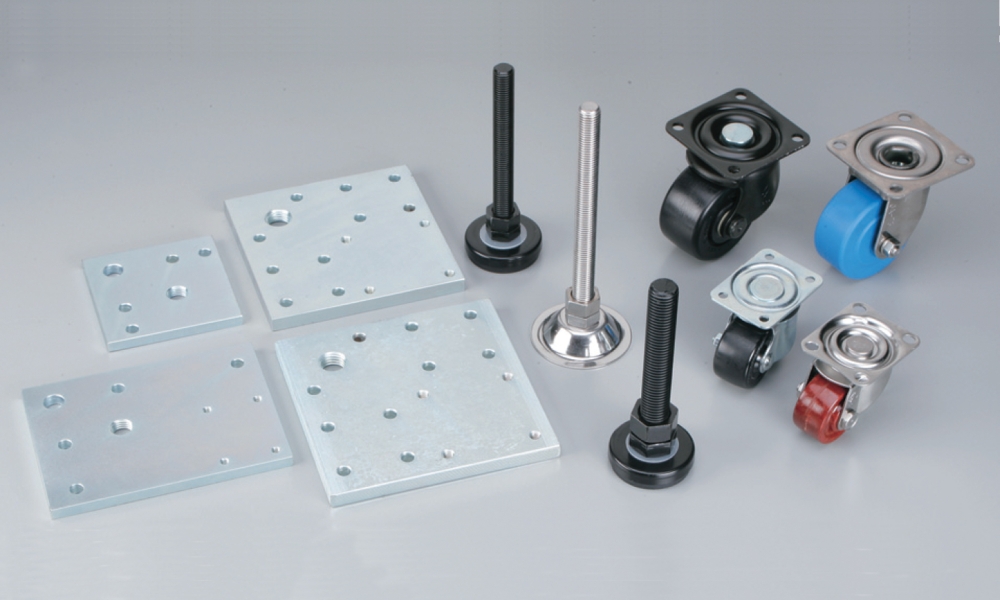

Adjuster Kit

Product Type

Level Aduster Kit L

Item No. : SFK-501A

STP SOLID DXF

Technical Data >>

Name: Level Aduster Kit L
L (mm): -
Material: Adjuster Plate L: SS400 Uni-Chrome
Adjuster M16: SS400 Zn Black (Bottom: Neoprene Rubber)
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Plate L x1
Adjuster M16 x1
T Nut L (M8) x4
Hexagon Socket Bolt (M8 x20) x4
Mass Unit: Adjuster Plate L: 650 g
Adjuster M16: 386 g (Load capacity 500 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit L (Stainless)

Item No. : SFK-501S

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit L (Stainless)
L (mm): -
Material: Adjuster Plate L (Stainless): SS304
Adjuster BM16 (Stainless): SS304 Electropolishing
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Plate L (Stainless) x 1
Adjuster BM16 (Stainless) x1
ST Nut L (M8) x4
Hexagon Socket Bolt (M8 x20) Stainless x4
Mass Unit: Adjuster Plate L (Stainless): 660 g
Adjuster BM16 (Stainless): 375 g (Load capacity 560 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit L with Caster

Item No. : SFK-502A

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit L with Caster
L (mm): -
Material: Adjuster Caster Plate L: SS400 Uni-Chrome
Caster B: Phenolic Resin
Adjuster M16: SS400 Zn Black (Bottom: Neoprene Rubber)
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate L x1
Caster B x1
Hexagon Socket Bolt (M6 x10) x4
Adjuster M16 x1
T Nut L (M8) x4
Hexagon Socket Bolt (M8 x20) x4
Mass Unit: Adjuster Caster Plate L: 1.03 kg
Caster B: 340 g (Load capacity 150 kg)
Adjuster M16: 386 g (Load capacity 500 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit L with Caster (Stainless)

Item No. : SFK-502S

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit L with Caster (Stainless)
L (mm): -
Material: Adjuster Caster Plate L (Stainless): SUS304
Adjuster BM16 (Stainless): SUS304 Electropolishing
Caster B (Stainless): Phenolic Resin
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate L (Stainless) x1
ST Nut L (M8) x4
Hexagon Socket Bolt (M8 x12) Stainless x4
Adjuster BM16 (Stainless) x1
Caster B (Stainless) x1
Hexagon Socket Bolt (M8 x20) Stainless x4
Mass Unit: Adjuster Caster Plate L (Stainless): 1.04 kg
Adjuster BM16 (Stainless): 375 kg (Load capacity 560 kg)
Caster B (Stainless): 285 g (Load capacity 71.4 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit 80

Item No. : SFK-513A

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit 80
L (mm): -
Material: Adjuster Caster Plate 80: SS400 Uni-Chrome
Adjuster M20: SS400 Zn Black
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate 80 x1
Adjuster M20 x1
Flat Washer(M8) x8
T Nut L (M8) x8
Hexagon Socket Bolt (M8 x25) x8
Mass Unit: Adjuster Caster Plate 80: 2 kg
Adjuster M20: 563 g (Load capacity 500 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit 80 (Stainless)

Item No. : SFK-513S

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit 80 (Stainless)
L (mm): -
Material: Adjuster Caster Plate 80 (Stainless): SUS304
Adjuster BM20 (Stainless): SUS304 Electropolishing
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate 80 (Stainless) x1
Hexagon Socket Bolt (M8 x25) Stainless x8
ST Nut L (M8) x8
Adjuster BM20 (Stainless) x1
Flat Washer (M8) Stainless x8
Mass Unit: Adjuster Caster Plate 80 (Stainless): 2.02 kg
Adjuster BM20 (Stainless): 540 g (Load capacity 880 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit 80 with Caster

Item No. : SFK-514A

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit 80 with Caster
L (mm): -
Material: Adjuster Caster Plate 80: SS400 Uni-Chrome
Adjuster M20: SS400 Zn Black
Caster C: Nylon
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate 80 x1
Adjuster M20 x1
Hexagon Socket Bolt (M8 x25) x8
Caster C x1
T Nut L (M8) x8
Flat Washer (M8) x8
Hexagon Socket Bolt (M8 x12) x4
Mass Unit: Adjuster Caster Plate 80: 2 kg
Adjuster M20: 536 g (Load capacity 500 kg)
Caster C: 902 g (Load capacity 300 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit 80 with Caster (Stainless)

Item No. : SFK-514S

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit 80 with Caster (Stainless)
L (mm): -
Material: Adjuster Caster Plate 80 (Stainless): SUS304
Adjuster BM20 (Stainless): SUS304 Electropolishing
Caster C (Stainless): MC Nylon
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate 80 (Stainless) x1
Adjuster BM20 (Stainless) x1
Hexagon Socket Bolt (M8 x25) Stainless x8
Caster C (Stainless) x1
ST Nut L (M8) x8
Flat Washer (M8) Stainless x8
Hexagon Socket Bolt (M8 x12) Stainless x4
Mass Unit: Adjuster Caster Plate 80 (Stainless): 2.02 kg
Adjuster BM20 (Stainless): 540 g (Load capacity 880 kg)
Caster C (Stainless): 520 g (Load capacity 150 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit 90

Item No. : SFK-515

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit 90
L (mm): -
Material: Adjuster Caster Plate 90: SS400 Uni-Chrome
Adjuster M20: SS400 Zn Black
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate 90 x1
Adjuster M20 x1
Flat Washer (M8) x8
T Nut (M8) x8
Hexagon Socket Bolt (M8 x25) x8
Mass Unit: Adjuster Caster Plate 90: 2.5 kg
Adjuster M20: 536 g (Load capacity 500 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit 90 with Caster

Item No. : SFK-516

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit 90 with Caster
L (mm): -
Material: Adjuster Caster Plate 90: SS400 Uni-Chrome
Adjuster M20: SS400 Zn Black
Caster C: Nylon
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate 90 x1
Adjuster M20 x1
Hexagon Socket Bolt (M8 x25) x8
Caster C x1
T Nut L (M8) x8
Flat Washer (M8) x8
Hexagon Socket Bolt (M8 x12) x4
Mass Unit: Adjuster Caster Plate 90: 2.5 kg
Adjuster M20: 536 g (Load capacity 500 kg)
Caster C: 902 g (Load capacity 300 kg)
EnvironmentRoHS: RoHS10 Compliant

Detail Product Other

Compatible to all SF40 and 45 series (Groove Width 10 mm
