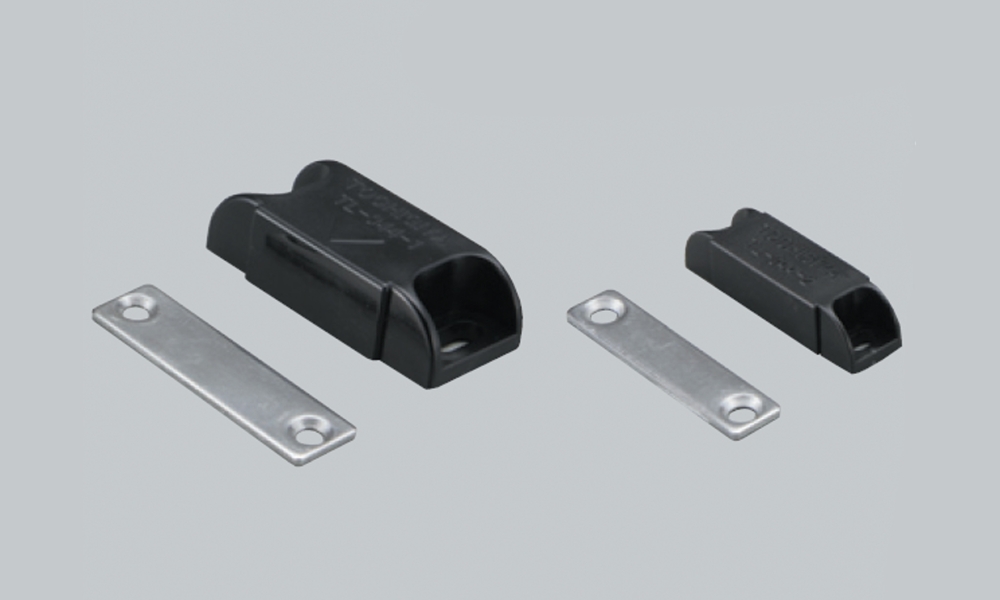

Magnet Catch CR-N (For Frame Rim Door)

Product Type

Magnet Catch CR (N)

Item No. : SFA-44A

STP SOLID DXF

Technical Data >>

Name: Magnet Catch CR (N)
L (mm): -
Material: Housing: Resin
Magnet: Neodymium
Fixing Disc-CR Magnet Plate: Stainless
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: 30.2 g
EnvironmentRoHS: RoHS Compliant

CR Plate -N

Item No. : SFA-4EA

STP SOLID DXF

Technical Data >>

Magnet Catch CR-N S Kit

Item No. : SFK-4EA

STP SOLID DXF

Technical Data >>

Name: Magnet Catch CR-N S Kit
L (mm): -
Material: Housing: Resin
Magnet: Neodymium
Fixing Disc-CR Magnet Plate: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch CR-N x 1
CR Plate-N x 1
CR Bracket x 1
Cross-Recessed Small Flat Screw M3 x 6 (Stainless) x 2
ST Nut SS (M3) x 2
Truss Screw M4 x 6 (Stainless) x 4
Truss Screw M4 x 10 (Stainless) x 2
ST Nut S (M4) x 2
Mass Unit: -
EnvironmentRoHS: RoHS Compliant

Magnet Catch CR-N L Kit

Item No. : SFK-4EB

STP SOLID DXF

Technical Data >>

Name: Magnet Catch CR-N L Kit
L (mm): -
Material: Housing: Resin
Magnet: Neodymium
Fixing Disc-CR Magnet Plate: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch CR-N x 1
CR Plate-N x 1
CR Bracket x 1
Cross-Recessed Small Flat Screw M3 x 6 (Stainless) x 2
ST Nut SS (M3) x 2
Truss Screw M4 x 6 (Stainless) x 4
Truss Screw M4 x 12 (Stainless) x 2
ST Nut L (M4) x 2
Mass Unit: -
EnvironmentRoHS: RoHS Compliant

Magnet Catch CR-N S-S Kit

Item No. : SFK-4EC

STP SOLID DXF

Technical Data >>

Name: Magnet Catch CR-N S-S Kit
L (mm): -
Material: Housing: Resin
Magnet: Neodymium
Fixing Disc-CR Magnet Plate: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch CR-N x 1
T Slot Assist B55 x 1
CR Magnet Plate x 1
Crass-Recessed Small Flat Screw M3 x 8 (Stainless) x 2
ST Nut S (M3) x 2
Truss Screw M4 x 10 (Stainless) x 4
ST Nut S (M4) x 4
Mass Unit: -
EnvironmentRoHS: RoHS Compliant

Magnet Catch CR-N L-S Kit

Item No. : SFK-4ED

STP SOLID DXF

Technical Data >>

Name: Magnet Catch CR-N L-S Kit
L (mm): -
Material: Housing: Resin
Magnet: Neodymium
Fixing Disc-CR Magnet Plate: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch CR-N x 1
CR Plate-N x 1
CR Bracket x 1
CR Magnet Plate x 1
Cross-Recessed Small Flat Screw M3 x 8 (Stainless) x 2
ST Nut S (M3) x 2
Truss Screw M4 x 6(Stainless) x 4
TrussScrew M4 x 12 (Stainless) x 2
ST Nut L (M4) x 2
Mass Unit: -
EnvironmentRoHS: RoHS Compliant

Magnet Catch CR-N L40-L40 Kit

Item No. : SFK-4EE

STP SOLID DXF

Technical Data >>

Name: Magnet Catch CR-N L40-L40 Kit
L (mm): -
Material: Housing: Resin
Magnet: Neodymium
Fixing Disc-CR Magnet Plate: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch CR-N x 1
T Slot Assist B55 x 1
CR Magnet Plate x 1
Cross-Recessed Small Flat Screw M3 x 10 (Stainless) x 2
Accessory Nut L-M3 x 2
Truss Screw M4 x 10 (Stainless) x 2
ST Nut S (M4) x 2
Truss Screw M4 x 12 (Stainless) x 2
ST Nut S (M4) x
Mass Unit: -
EnvironmentRoHS: RoHS Compliant

Magnet Catch CR-N L45-L Kit

Item No. : SFK-4EF

STP SOLID DXF

Technical Data >>

Name: Magnet Catch CR-N L45-L Kit
L (mm): -
Material: Housing: Resin
Magnet: Neodymium
Fixing Disc-CR Magnet Plate: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Magnet Catch CR-N x 1
CR Plate-N x 1
CR Bracket x 1
CR Magnet Plate x 1
Cross-Recessed Small Flat Screw M3 x 10 (Stainless) x 2
Accessory Nut L-M3 x 2
Truss Screw M4 x 6 (Stainless) x 4
TrussScrew M4 x 12 (Stainless) x 2
ST Nut L (M4) x 2
Mass Unit: -
EnvironmentRoHS: RoHS Compliant

- Adsorbability:23N

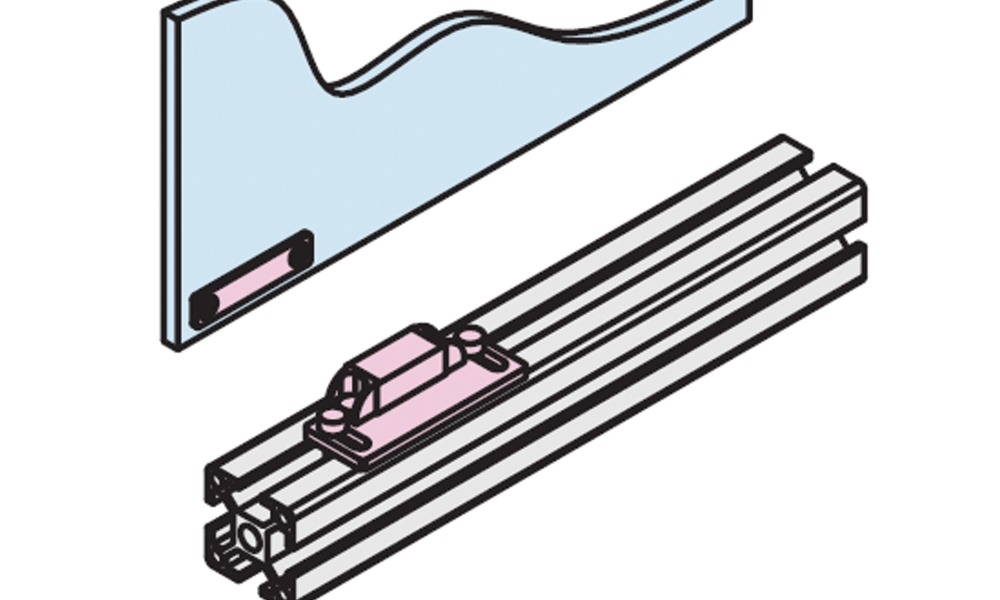

- For Frame Rim Door
